High-speed systems rely on a great deal of analog content in order to process signals and data properly. Whether it is the very low voltage regulators powering a system or the various digital to analog converters (DACs) and analog to digital converters (ADCs), these systems require accurate and low noise tools for measurement and verification.

Introspect Technology products are used regularly in analog and mixed-signal paradigms. For example, Modem chipsets converting RF signals into digital (and vice versa) often rely on a mix of analog sections and SerDes sections. Similarly, low voltage power delivery network (PDN) design and optimization benefits from our various hardware probing and software processing solutions.

Industry Challenges

  • Mixed-signal analog and digital chains
  • System-level interaction between analog and digital
  • Very low voltage levels
  • Very low noise levels

Introspect Capability

  • SerDes tools for generating or receiving real-time data converter traffic
  • Low voltage probing solutions
  • Sophisticated software tools for mixed-domain time and frequency analysis
  • PurVue Analyzer™: Brand new I3C protocol-triggered real-time oscilloscope compatible with SV4E-I3C I3C Test and Debug Module, thus eliminating the need for external active probes or benchtop oscilloscopes.

DDR & GDDR Exercisers

SV7C Personalized SerDes Tester
Phase-Aligned Bit Error Rate Tester (BERT) and Protocol Exerciser and Analyzer up to 28 Gbps

Serial & Parallel BERTs

SV3C-4 Personalized SerDes Tester
Highly parallel tester for DDR, clock forwarded, and embedded clock applications up to 4 Gbps
SV2C
SV2C-32 Personalized SerDes Tester
8-Lane, 32 Gbps for high-end SerDes applications
SV1C-14 Personalized SerDes Tester
SerDes tester for clock forwarded and embedded clock applications up to 14.1 Gbps
SV1C-12 Personalized SerDes Tester
SerDes tester for clock forwarded and embedded clock applications up to 12.5 Gbps
SV1C-8 Personalized SerDes Tester
SerDes tester for applications up to 8 Gbps
SV1C-4 Personalized SerDes Tester
SerDes tester for applications up to 4 Gbps

Probe Products

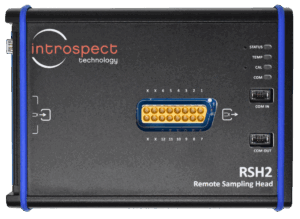

Remote Sampling Head product photo
RSH2 Remote Sampling Head
12 Active Probes Integrated Into a Clean, Shielded Form Factor
RSH1 Remote Sampling Head
Clean Probing of Parallel Buses
PV2 Universal Active Probe
Probing Solution with 8 GHz Bandwidth
PV1 Active Probe
PV1 Universal Active Probe
Probing Solution with 5 GHz Bandwidth

Test Modules

SV3D-14 Direct Attach SerDes Test Module
Ultra-compact 32 lane test module for mounting on any application board (14.1 Gbps)
SV3D-12 Direct Attach SerDes Test Module
Ultra-compact 32 lane test module for mounting on any application board (12.5 Gbps)
SV3D-8 Direct Attach SerDes Test Module
Ultra-compact 32 lane test module for mounting on any application board (8 Gbps)
SV3D-4
Ultra-compact 32 lane test module for mounting on any application board (4 Gbps)
SV2D-32 Direct Attach SerDes Test Module
High-performance tester that mounts directly on any load board (32 Gbps)
SV1D-4
Highly integrated tester that mounts directly on an ATE load board (4 Gbps)

Digital IO Test Modules

PurVue Analyzer Logo
PurVue Analyzer™
Highly Commended Embedded Real-time Oscilloscope for SV6E-X
