• Bandwidth, Sampling Rate, and Resolution: achieves 500 MHz bandwidth, 1 Gsps sampling rate,12-bit resolution on 2 simultaneous channels (one for SCL and one for SDA)
  • Protocol-Based Hardware Triggers: works in tandem with the SV4E-I3C protocol analyzer core and leverages the entire list of event triggers
  • Easy to Use: completely integrated with Introspect’s award-winning software and enables interactive operation or full automation

Benefits

  • Bandwidth, Sampling Rate, and Resolution: achieves 500 MHz bandwidth, 1 Gsps sampling rate,12-bit resolution on 2 simultaneous channels (one for SCL and one for SDA)
  • Protocol-Based Hardware Triggers: works in tandem with the SV4E-I3C protocol analyzer core and leverages the entire list of event triggers
  • Easy to Use: completely integrated with Introspect’s award-winning software and enables interactive operation or full automation

Features

Real-Time, High-Resolution, Single-Shot View of I3C Signals

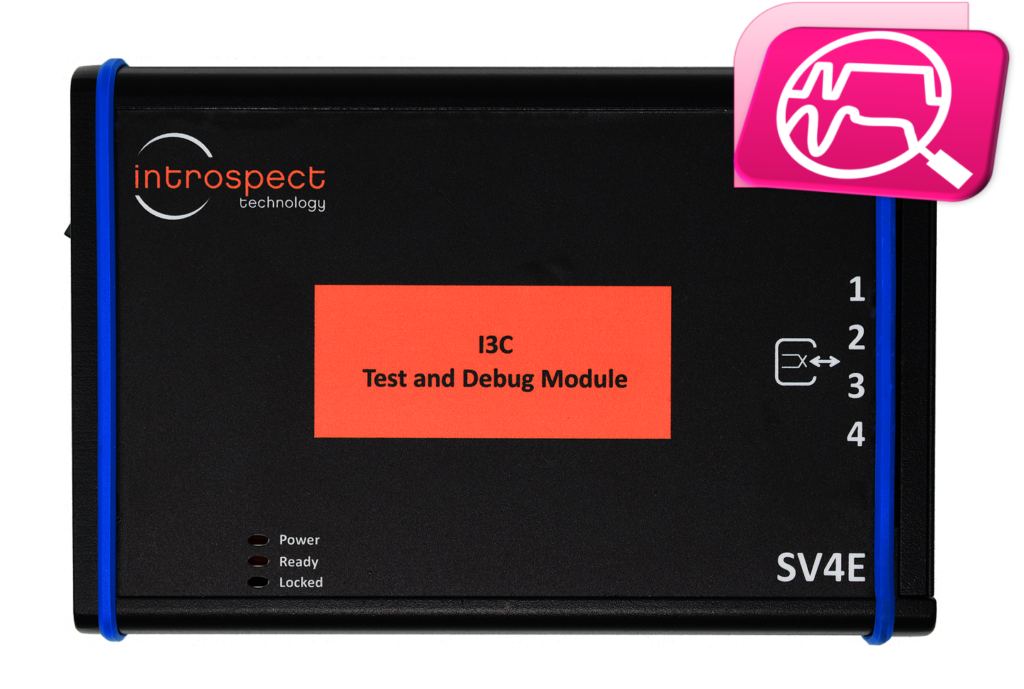

The Introspect Technology I3C PurVue Analyzer™ is a total game changer. It is an embedded 500 MHz, 12-bit I3C protocol-triggered real-time oscilloscope with 2 simultaneous channels. It provides internal probing of SCL and SDA signals within the SV4E-I3C Test and Debug Module. The new embedded oscilloscope license provides a real-time, single-shot view of all I3C signals. It eliminates probing hassles with conventional scopes (attachment issues, cost issues, EMI issues) and in-turn, completely eliminates the need for using a conventional scope.

This innovative feature also contains advanced protocol-based trigger options, thus providing completely seamless debug capability. Whereas conventional oscilloscopes are often retrofitted with “protocol-decode” features, the I3C PurVue Analyzer™ is the complete opposite – it can be triggered by the full protocol analyzer core within the SV4E-I3C. Finally, it is completely integrated with Introspect’s versatile software environment, Pinetree, and enables interactive operation or full automation.
