Originally introduced to replace legacy analog display technology interfaces, DisplayPort (DP(R)) has rapidly evolved to become the de facto global standard for connecting to high-performance displays in multiple form factors. It uses state-of-the-art digital communications protocol technology and extremely robust analog physical layer specifications to enable the most immersive display experiences — experiences that drive applications such as multi-monitor streaming, high refresh-rate gaming, and ultra high-resolution displays. More importantly, with increasing emphasis on single-cable connections such as Type-C and embedded connections in mobile form factors, DisplayPort also offers highly sophisticated protocol options that not only drive bandwidth but also protocol flexibility.

Introspect Technology has created a complete set of solutions for DisplayPort design validation, characterization, and production testing. Our solutions contain a wide host of protocol features for validating DisplayPort v1.4 and v2.0 implementations (among others), and they simultaneously include the most complete range of physical-layer features that enable testing receiver sensitivity and equalization capability. Most importantly, our solutions work with the ultra-flexible Pinetree software, thus offering complete flexibility in controlling and validating the highly complicated DP communications protocols.

Industry Challenges

  • Extremely high data rates
  • Closed-eye testing and link equalization training
  • Complex protocols for multi-stream transport, secondary packets, low-power mode, and others
  • Tight coupling between physical layer features (e.g. equalization) and protocol layer features (e.g. training)

Introspect Capability

  • Up to 26 Gbps coverage for v2.0 support
  • Pattern generators that support link training, multi-stream transport, audio streaming, and all other DP features
  • Pattern generators that support receiver stress testing using jitter injection, noise injection, and spread-spectrum clocking
  • Analyzers that can act as a sink (and negotiate link capability with a source device under test) or as a sniffing (probing) analyzer
  • Wide array of probing and repeater solutions that are transparent to the equalization training sequences between source and sink devices

DisplayPort Generators

Image of Embedded DisplayPort Generator
SV7C-eDP Embedded DisplayPort Generator
High-performance generator for eDP up to v2.0 and DP up to v2.1 in HBR and UHBR
Product image of SV5C-eDP Embedded DisplayPort Generator
SV5C-eDP Embedded DisplayPort Generator
High-performance generator for eDP v1.5 and DP v2.1 systems in HBR

DisplayPort Analyzers

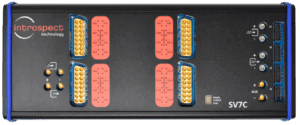

SV7C-eDP Analyzer
SV7C-eDP Embedded DisplayPort Analyzer
Complete analysis of eDP v1.5 and DP v2.1 systems in HBR and UHBR

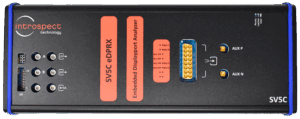

Product image of SV5C-eDPRX
SV5C-eDP Embedded DisplayPort Analyzer
Complete analysis of eDP v1.5 and DP v2.1 systems in HBR

Probe Products

Remote Sampling Head product photo
RSH2 Remote Sampling Head
12 Active Probes Integrated Into a Clean, Shielded Form Factor
RSH1 Remote Sampling Head
Clean Probing of Parallel Buses
Image of DisplayPort Chassis Probe
DisplayPort Chassis Probe
Waveform Probing for DisplayPort Streams
PV2 Universal Active Probe
Probing Solution with 8 GHz Bandwidth
PV1 Active Probe
PV1 Universal Active Probe
Probing Solution with 5 GHz Bandwidth
