• Supports Embedded DisplayPort (eDP) up to v2.0 and DisplayPort (DP) up to v2.1 in HBR and UHBR
  • Unique features for stressing a DisplayPort sink device, including per-lane voltage amplitude, common-mode voltage control, jitter injection, sinusoidal voltage noise injection, and per-wire timing skew.
  • An all‐in‐one system that enables the simplest bench environment for physical layer test to full protocol layer validation
  • Full video frame generation with 8 GBytes of total pattern memory
  • Leverages the full power of Python and award-winning Introspect ESP Software. Scripting capability is ideal for debug tasks and for full‐fledged production screening of devices and systems
Popular solutions
DisplayPort v1.4, Embedded DisplayPort, DisplayPort v2.0, DisplayPort v2.1, Embedded DisplayPort v1.5
Maximum Per-Lane Data Rate

26 Gbps

Number of Lanes

4 Lanes + AUX

BENEFITS

  • Supports Embedded DisplayPort (eDP) up to v2.0 and DisplayPort (DP) up to v2.1 in HBR and UHBR
  • Unique features for stressing a DisplayPort sink device, including per-lane voltage amplitude, common-mode voltage control, jitter injection, sinusoidal voltage noise injection, and per-wire timing skew.
  • An all‐in‐one system that enables the simplest bench environment for physical layer test to full protocol layer validation
  • Full video frame generation with 8 GBytes of total pattern memory
  • Leverages the full power of Python and award-winning Introspect ESP Software. Scripting capability is ideal for debug tasks and for full‐fledged production screening of devices and systems

Features

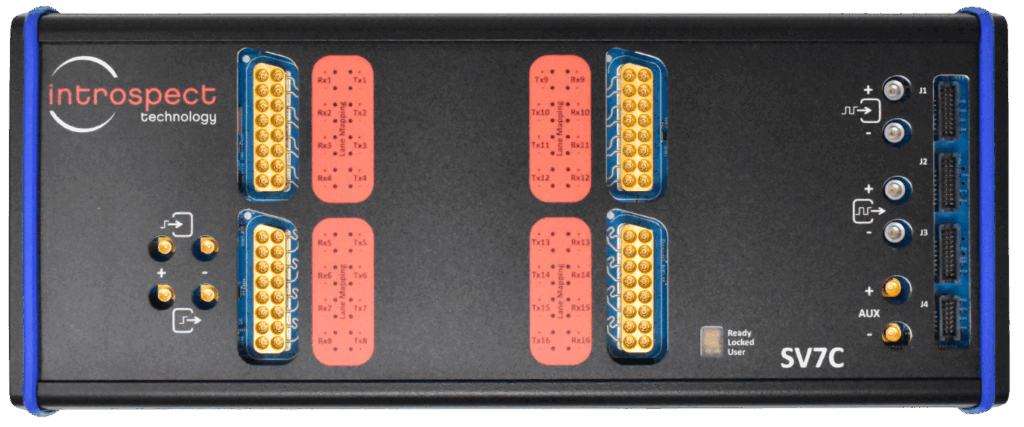

The SV7C-eDP Embedded DisplayPort Generator is an ultra-portable, high-performance instrument capable of generating traffic for Embedded DisplayPort up to v2.0 and DisplayPort applications up to v2.1. The SV7C-eDP Generator provides analog parameter controls that enable DisplayPort receiver stress-testing and allow for deep insights into voltage and timing sensitivities of DisplayPort sink devices. The instrument operates with the award-winning Pinetree software environment which includes full pattern synthesis tools for generating test patterns and video frames for system-level test.

Close-up of a packet in Multi Stream Transport
