• Protocol: supports Embedded DisplayPort (eDP) up to v1.4 and Display Port (DP) up to v1.4
  • Supported Data Rates: up to 8.1 Gbps for both direct connection and bus probing
  • Lane Count: configurable from 1 to 4 lanes per port (L0 to L3) plus auxiliary channel (AUX)
  • Data Capture: extensive triggering functions and consecutive frame capture capabilities
  • Diagnostics: full video frame extraction including standard event and symbol tables for visual analysis and data collection
Popular solutions
DisplayPort v1.4, Embedded DisplayPort
Number of Signal/Data Analyzers

4+AUX

Maximum Per-Lane Data Rate

8.1 Gbps

BENEFITS

  • Protocol: supports Embedded DisplayPort (eDP) up to v1.4 and Display Port (DP) up to v1.4
  • Supported Data Rates: up to 8.1 Gbps for both direct connection and bus probing
  • Lane Count: configurable from 1 to 4 lanes per port (L0 to L3) plus auxiliary channel (AUX)
  • Data Capture: extensive triggering functions and consecutive frame capture capabilities
  • Diagnostics: full video frame extraction including standard event and symbol tables for visual analysis and data collection

Features

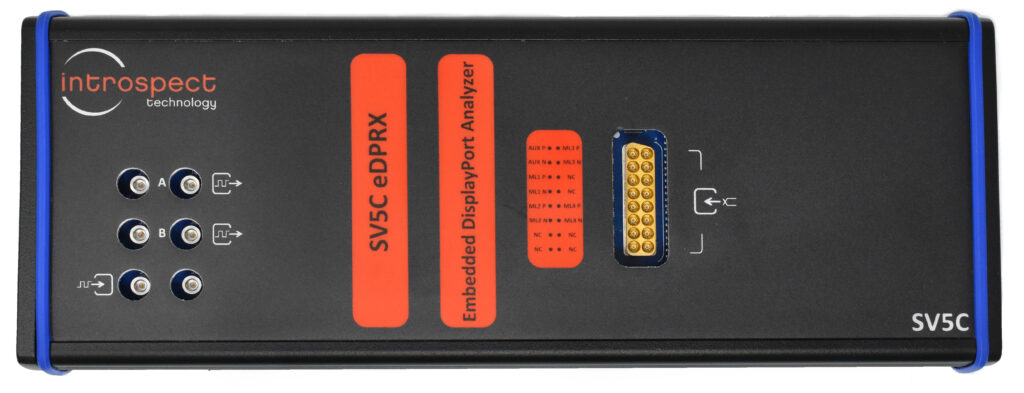

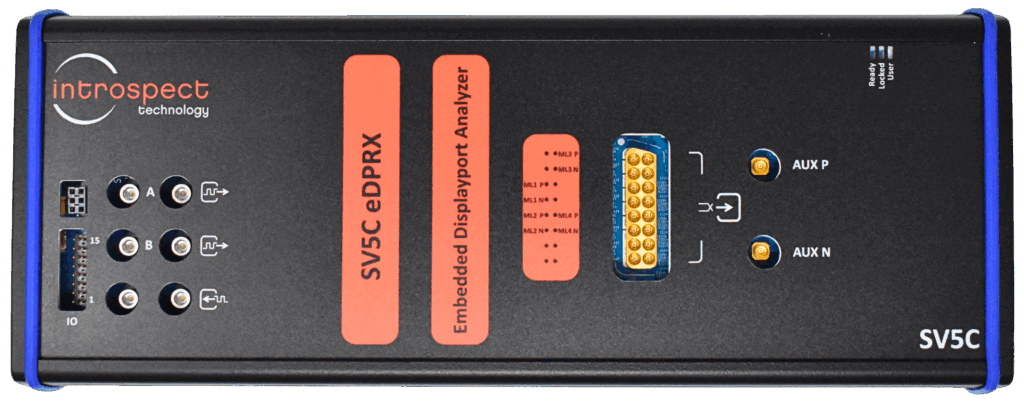

The SV5C-eDP Embedded DisplayPort Analyzer is an ultra-portable, high-performance instrument capable of analyzing traffic for Embedded DisplayPort and DisplayPort applications. The SV5C-eDP Analyzer may be used as either a DisplayPort sink device (for source testing) or as a probing solution for capturing protocol traffic on an Embedded DisplayPort bus. The Analyzer can capture live traffic, decode symbols, detect display parameters, and extract full video frames. All of these functions are integrated into the award-winning Introspect ESP Software environment. The figure below illustrates a typical application of the SV5C-eDP Analyzer connected to an Embedded DisplayPort Source.

SV5C-eDP Analyzer & Motherboard
