• Any-rate operation
  • Per-lane HS voltage level and common-mode control
  • Per-lane LP voltage level control
  • Per-lane skew injection with < 1 ps resolution
  • Per-lane multi-source jitter injection
  • State-of-the-art programming environment based on the highly intuitive Python language
Popular solutions
MIPI D-PHY v3.5, MIPI D-PHY v1.1, v1.2, v2.1, MIPI D-PHY v3.0
Number of Lanes

4

Maximum Per-Lane Data Rate

12.5 Gbps

Benefits

  • Any-rate operation
  • Per-lane HS voltage level and common-mode control
  • Per-lane LP voltage level control
  • Per-lane skew injection with < 1 ps resolution
  • Per-lane multi-source jitter injection
  • State-of-the-art programming environment based on the highly intuitive Python language

Features

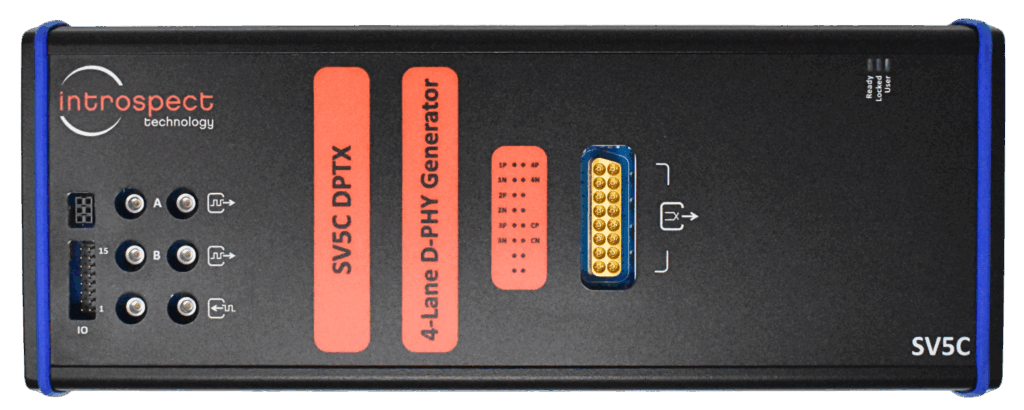

The SV5C-DPTX MIPI D-PHY Generator is an ultra-portable, high-performance instrument that enables exercising and validating MIPI D-PHY receiver ports. Capable of generating any traffic and being completely data-rate agile, the D-PHY generator includes analog parameter controls that enable gaining deep insights into receiver sensitivity performance, as well as skew and jitter tolerance. Additionally, the SV5C-DPTX Generator supports embedded clock.

The SV5C-DPTX MIPI D-PHY Generator operates using Introspect’s award-winning software environment, Pinetree. This environment allows for automating receiver tests such as voltage sensitivity or clock-to-data setup and hold times. The environment also includes MIPI pattern tools that enable the generation of complete DSI-2 or CSI-2 packets such as those produced by image sensors or radar devices.
