• Debug Live Source-Synchronous Memory Interfaces: Probe a live DDR, LPDDR, or GDDR link with high-impedance probes and superior signal integrity.
  • Gain Instant Visibility: Visualize signal transitions on command and data buses with the confidence of active probing and the highest sampling rate in the industry.
  • Automatic Protocol Decode: For the most popular protocols, built-in decoding allows for understanding command scheduling, measuring timings, analyzing statistics, and much more.
  • Track Real-World Clock Conditions: Continuously capture data through instantaneous clock stops, starts, and frequency changes without resynchronization.
  • Advanced Triggers: Trigger captures based on known commands or unknown commands through custom triggers.
Popular solutions
LPDDR5, GDDR7, LPDDR6, GDDR6, DDR6, DDR5
MAX SAMPLING RATE

80 GS/s

NUMBER OF CHANNELS

36

BENEFITS

  • Debug Live Source-Synchronous Memory Interfaces: Probe a live DDR, LPDDR, or GDDR link with high-impedance probes and superior signal integrity.
  • Gain Instant Visibility: Visualize signal transitions on command and data buses with the confidence of active probing and the highest sampling rate in the industry.
  • Automatic Protocol Decode: For the most popular protocols, built-in decoding allows for understanding command scheduling, measuring timings, analyzing statistics, and much more.
  • Track Real-World Clock Conditions: Continuously capture data through instantaneous clock stops, starts, and frequency changes without resynchronization.
  • Advanced Triggers: Trigger captures based on known commands or unknown commands through custom triggers.

Features

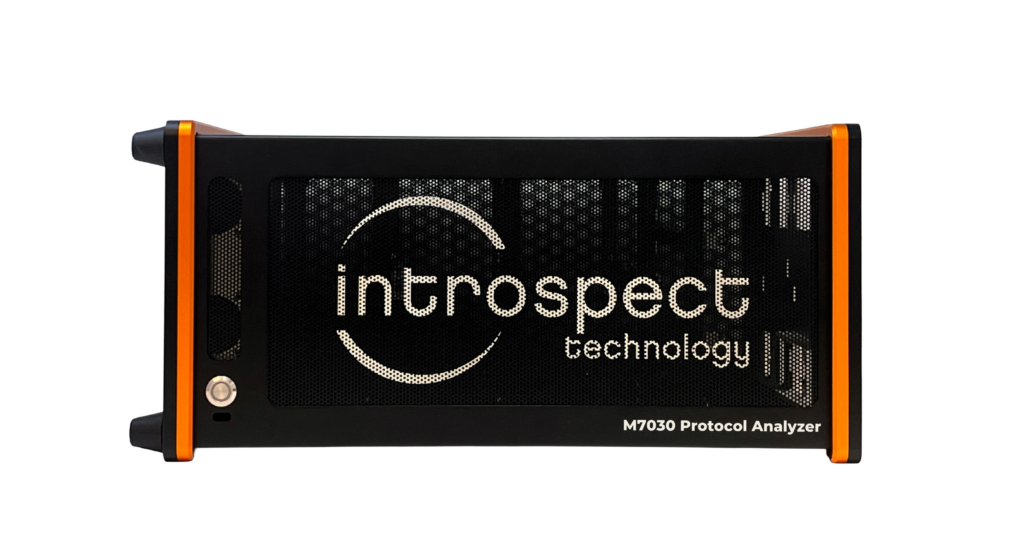

The M7030 is a high sampling rate logic and protocol analyzer solution for DDR and LPDDR, as well as future memory interfaces including HBM and GDDR. Featuring up to 36 high-speed, source-synchronous channels and an 80 Gsps sampling rate, the M7030 utilizes Introspect’s award-winning Pinetree™ software environment to enable rapid protocol decoding and automated timing analysis. Using high-impedance active probing with dedicated interposers, it delivers deep visibility into next-generation DDR and LPDDR systems at 20,000 MT/s and beyond, without disturbing the signal.





Innovative Connection Options

A single M7030 system acts as a powerful link sniffer using Introspect’s specialized integrated-tip interposers and the remote sampling head (RSH).

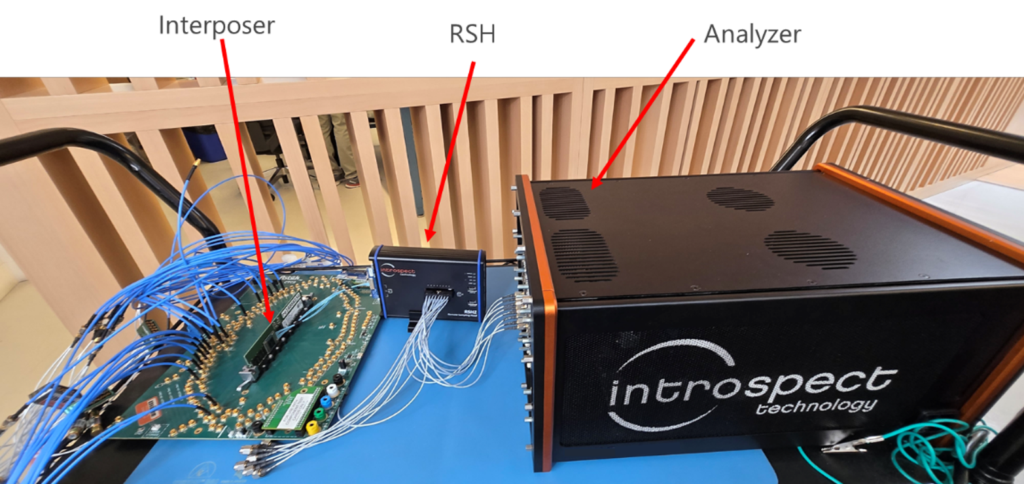

Figure 1: M7030 DDR and LPDDR validation solution



Capture and Decode DDR and LPDDR Signals

M7030 captures DDR and LPDDR logic signals across up to 36 channels with non-intrusive probing. The analyzer decodes complex waveforms into readable DDR commands, enabling high level analysis.

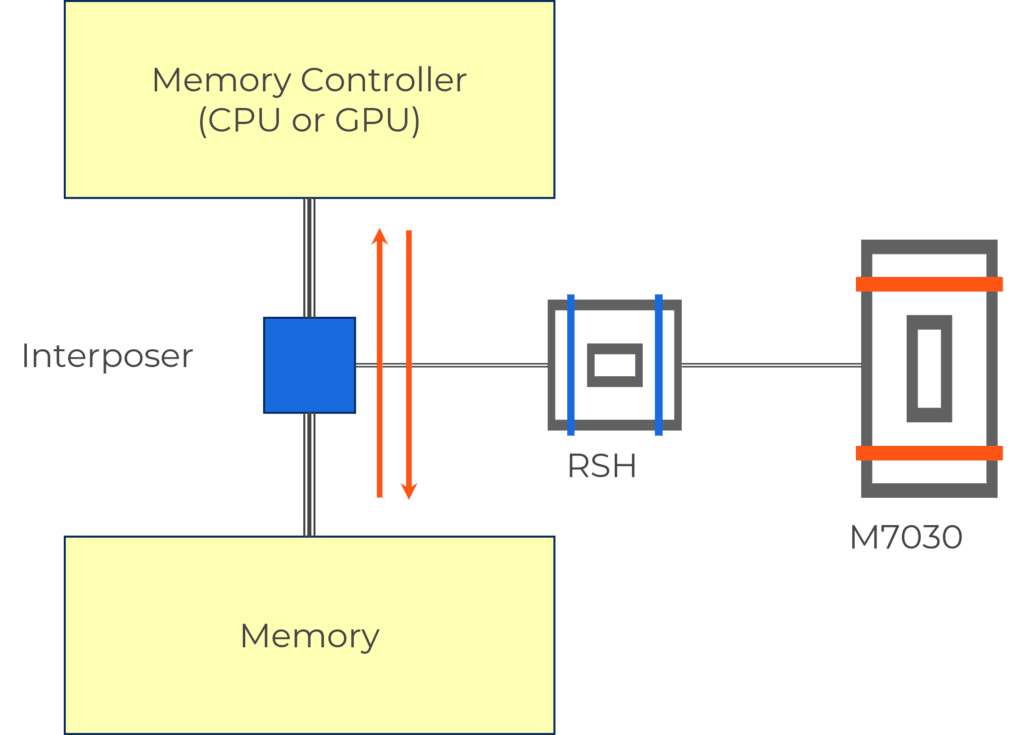

Figure 2: M7030 analyzer concept

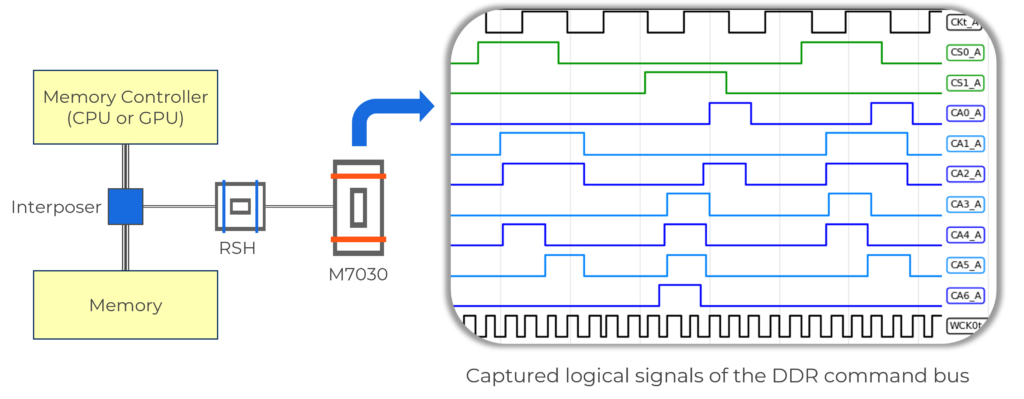

Figure 3: Capture DDR and LPDDR signals

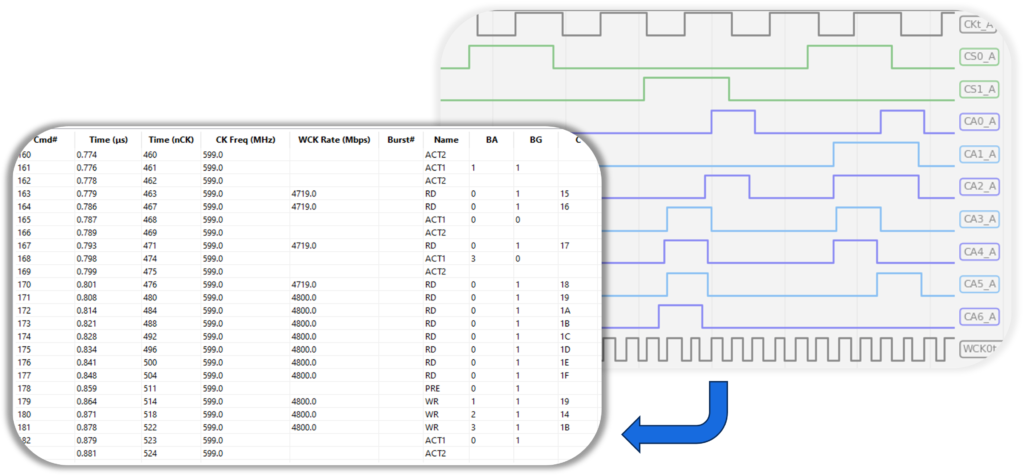

Figure 4: Interpret logical signals into DDR commands
