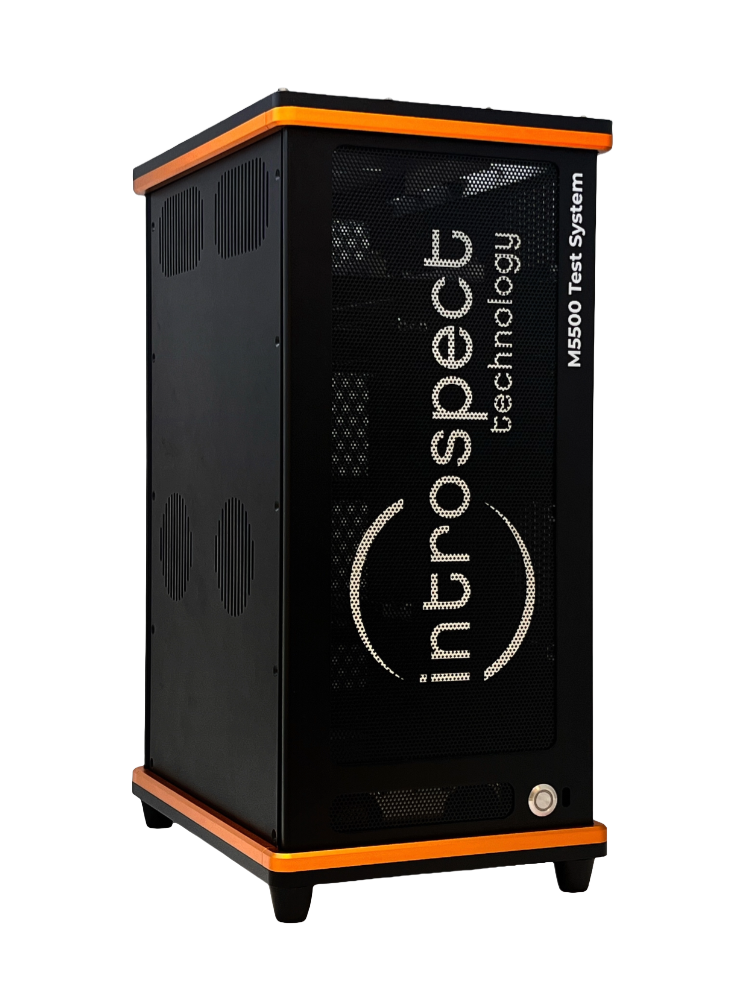

A massively parallel benchtop system, the M5504 provides bench-grade measurement accuracy and precision, but at a scale that is not possible using conventional bit error rate tester (BERT) solutions. Featuring 48 high-speed, bidirectional, source-synchronous channels, the M5504 is programmed using Introspect’s award-winning Pinetree™ environment in order to enable rapid test program development and automated characterization. The M5504 delivers ATE-on-Bench performance, accelerating the development and deployment of next-generation graphics, AI, and mobile memory.
Innovative Connection Options
A single M5504 system can be transformed into a cable-connected parallel BERT or a benchtop ATE with a device interface board (DIB) or load board.

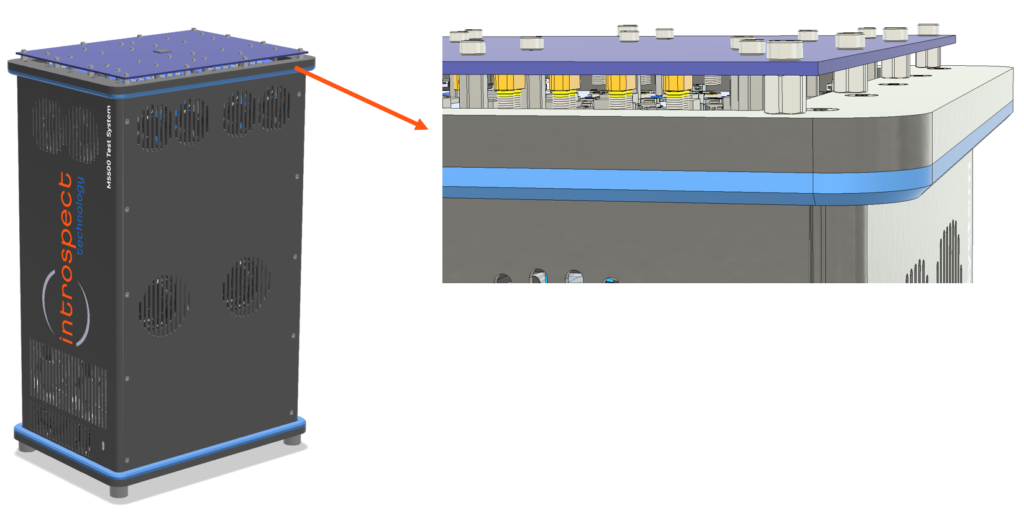

FIGURE 1: The M5504 used as a benchtop ATE with a device interface board or load board

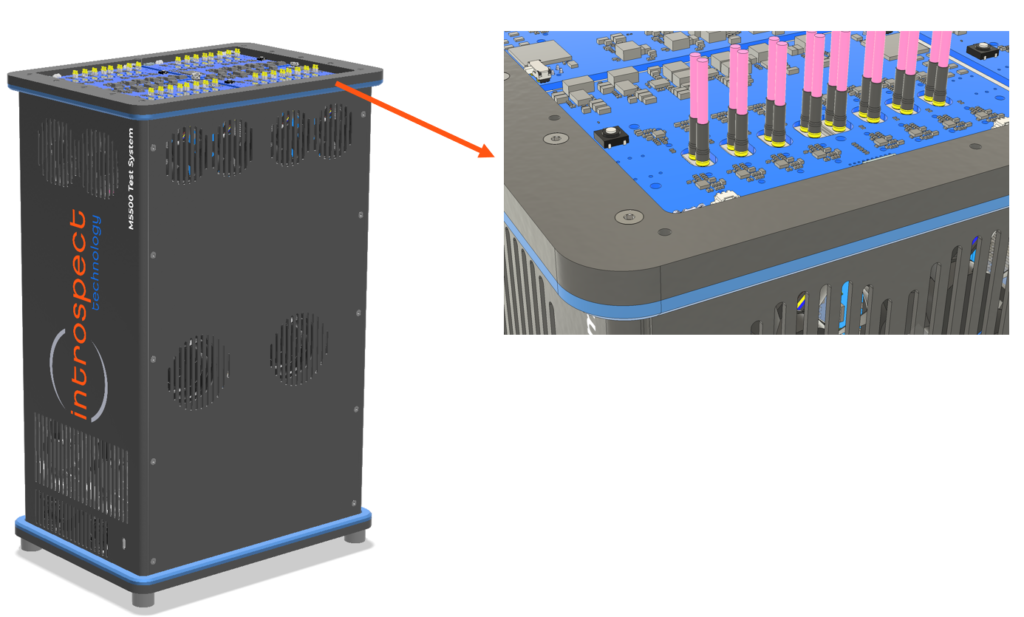

FIGURE 2: The M5504 used as a cable-connected parallel BERT, with compact, easy to use high-performance cables
Virtual Memory Controller

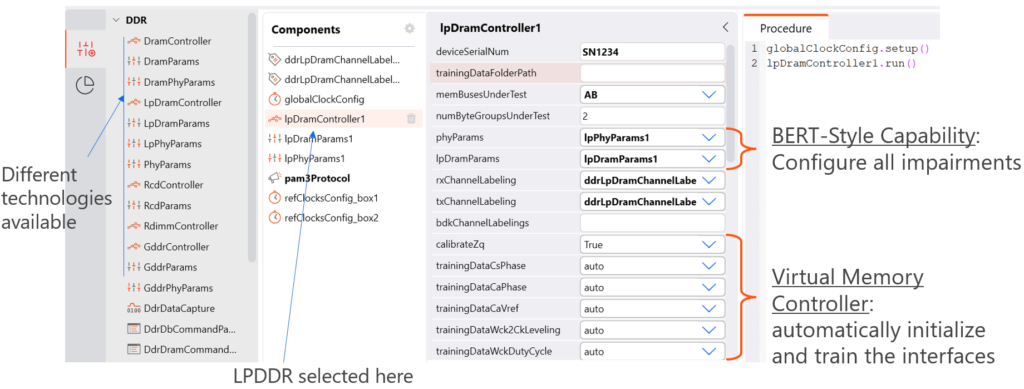

Operated using the versatile Pinetree™ software environment, our M5504 simplifies ultra high-speed memory testing and debugging. Focus on your test algorithms while our smart, virtual memory controller handles all the complexity.
- No Test Program Compilation or Vector Edits Needed: Use Pinetree™ to create memory commands interactively on the fly, without modifying vectors.
- Cable Delays Don’t Affect the Test Patterns: The built-in controller can retrain the interface when cable or PCB trace lengths change, keeping your originally developed functional vectors valid.
- Built-In Memory Measurements: Measure transmit voltage, signal timing, jitter, and noise for advanced performance analysis—no coding required.
