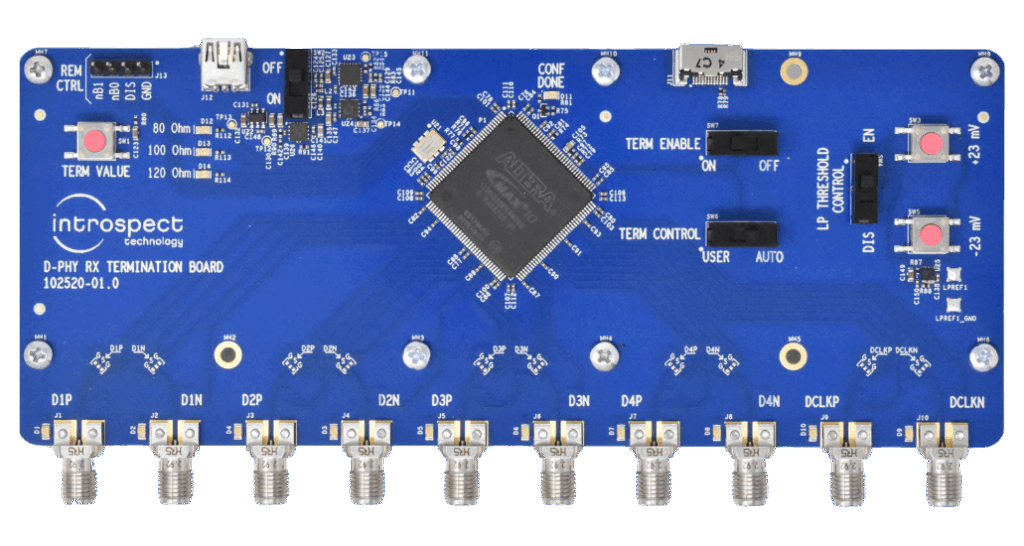

DRTB MIPI D-PHY Reference Termination Board

Introspect Technology’s DRTB MIPI D-PHY Reference Termination Board (RTB) allows users to emulate the behavior of a MIPI D-PHY receiver at data rates of up to 9.0 Gbps. The RTB engages termination upon the reception of a valid MIPI D-PHY high-speed signal and releases termination when high-speed transmissions are complete, thus creating a test bench for MIPI D-PHY transmitter evaluation. The RTB receives MIPI D-PHY signals via 2.92 mm connectors and uses a single USB 2.0 mini B cable connection for power, allowing users to quickly get up and running.
