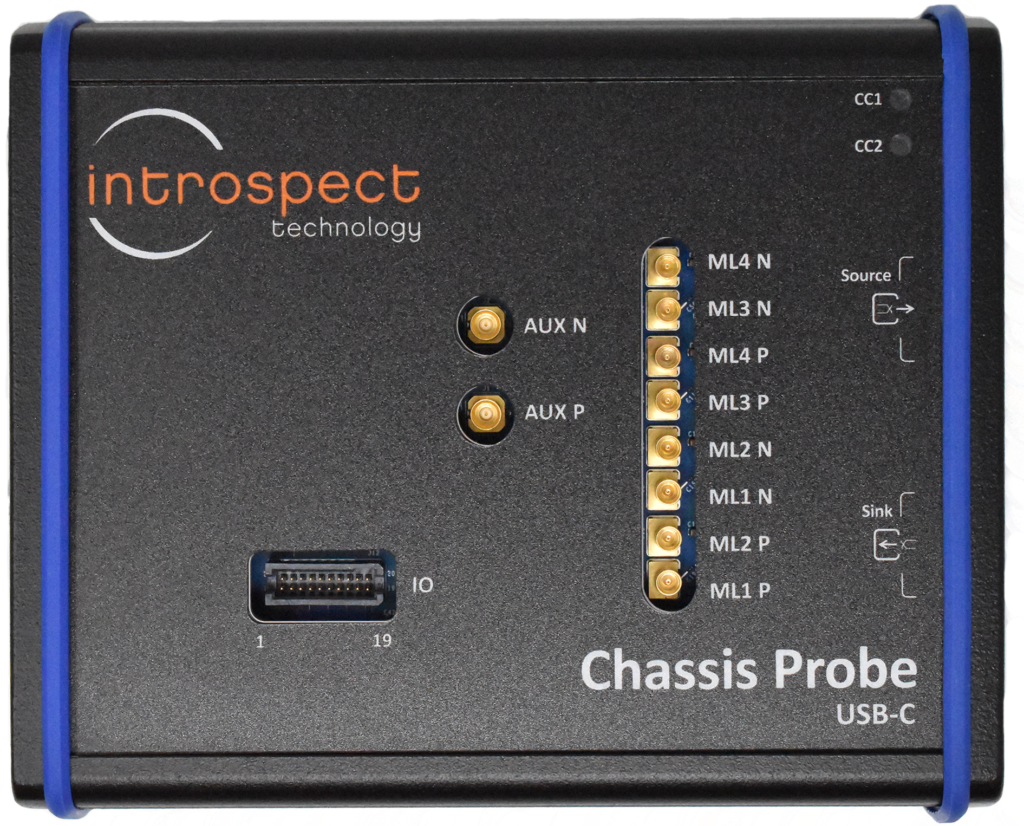

Introspect Technology’s USB-C Chassis Probe is an innovative solution that enables accurate waveform probing for USB-C streams up to 20 GHz. The primary signal path on the chassis probe creates a direct connection between a USB-C source and a USB-C sink. The secondary fanout path uses proprietary sensing technology to create a replica of the source signal, allowing for analog and digital analysis of live traffic on the bus without loading the primary USB-C signals. With a high impedance and a linear response, the replica waveforms produced by this device are highly accurate, making it an essential tool for any USB-C testing setup.
When used in conjunction with Introspect’s eDP Analyzer products, the chassis probe is a powerful and highly integrated tool for DisplayPort Alt-Mode applications. By connecting an SV5C-eDP or SV7C-eDP Analyzer to the probing path, both analog measurements and protocol analysis can be performed on the Main Link, AUX Channel, and Channel Configuration pins.
