• Any-rate operation
  • Per-lane HS voltage level and common-mode control
  • Per-lane LP voltage level control
  • Per-lane skew injection with < 1 ps resolution
  • Per-lane multi-source jitter injection
  • State-of-the-art programming environment based on the highly intuitive Python language
Popular solutions
MIPI D-PHY v3.5, MIPI C-PHY v2.0, MIPI D-PHY v3.0
Number of Lanes

4

Maximum Per-Lane Data Rate

8 Gsps in C-PHY mode, 12.5 Gbps in D-PHY mode

BENEFITS

  • Any-rate operation
  • Per-lane HS voltage level and common-mode control
  • Per-lane LP voltage level control
  • Per-lane skew injection with < 1 ps resolution
  • Per-lane multi-source jitter injection
  • State-of-the-art programming environment based on the highly intuitive Python language

Features

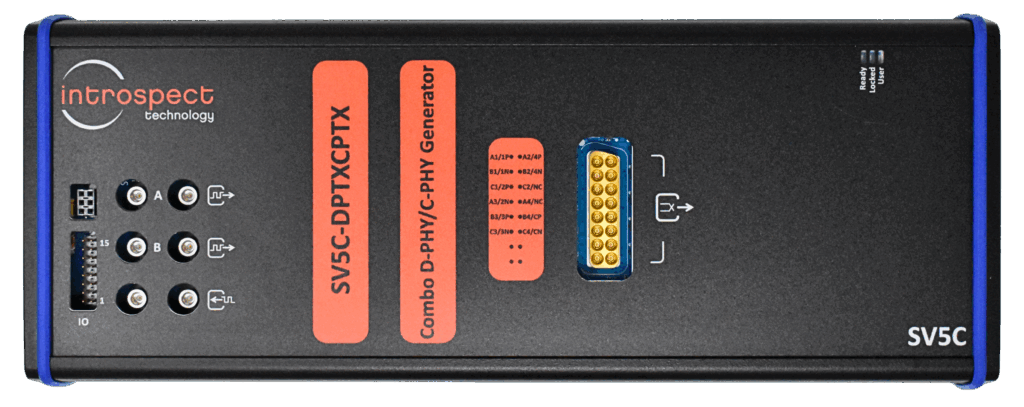

The SV5C-DPTXCPTX MIPI D-PHY and C-PHY Generator is an ultra-portable, high-performance instrument that enables characterization and validation of MIPI D-PHY and C-PHY receiver ports. The instrument operates at a continuous range of data rates and includes analog parameter controls that enable deep insights into receiver voltage sensitivity, receiver skew and jitter tolerance for receiver stress-testing. Additionally, it now supports embedded clock signaling.

The instrument operates with Introspect’s easy-to-use, highly versatile software environment, Pinetree, for automated physical layer compliance test. Pinetree also includes pattern synthesis tools that enable the generation of complete DSI-2 or CSI-2 packets such as color bars and active image frames for system-level test.
