• Any-rate operation across four D-PHY lanes plus D-PHY clock
  • Analog waveform capture on received LP and HS data
  • PHY-level burst-mode and continuous-mode analysis with advanced triggering options
  • High-level CSI-2 and DSI-2 protocol capture and analysis
  • State-of-the-art programming environment based on the highly intuitive Python language

BENEFITS

  • Any-rate operation across four D-PHY lanes plus D-PHY clock
  • Analog waveform capture on received LP and HS data
  • PHY-level burst-mode and continuous-mode analysis with advanced triggering options
  • High-level CSI-2 and DSI-2 protocol capture and analysis
  • State-of-the-art programming environment based on the highly intuitive Python language

Features

The SV5C-DPRX MIPI D-PHY Analyzer is an ultra-portable, high-performance instrument that enables characterization and validation of MIPI D-PHY transmitter ports.

The analyzer operates at up to 8.7 Gbps  and combines analog signal measurement capabilities with sophisticated capture and compare modes for complete D-PHY packet analysis. The instrument operates using Introspect’s highly versatile software environment, Pinetree, which includes a full suite of tools for DSI-2 and CSI-2 video frame extraction. The software enables test automation for packet error rate testing, protocol timing analysis and MIPI CTS.

The SV5C-DPRX Analyzer supports the optional embedded clock.

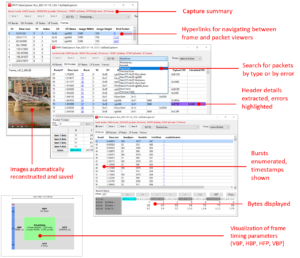

Illustration showing D-PHY software interface
