• Any-rate operation up to 8 Gsps per trio
  • Per-lane HS voltage level and common-mode control
  • Per-lane LP voltage level control
  • Per-wire skew injection with < 1 ps resolution
  • Per-lane multi-source jitter injection
  • State-of-the-art programming environment based on the highly intuitive Python language
Popular solutions
MIPI CSI-2 v4.0, MIPI C-PHY v1.0, v1.1, v1.2, MIPI CSI-2 v.3.0, MIPI C-PHY v2.0
Maximum Per-Lane Data Rate

8 Gsps

Number of Lanes

4

BENEFITS

  • Any-rate operation up to 8 Gsps per trio
  • Per-lane HS voltage level and common-mode control
  • Per-lane LP voltage level control
  • Per-wire skew injection with < 1 ps resolution
  • Per-lane multi-source jitter injection
  • State-of-the-art programming environment based on the highly intuitive Python language

Features

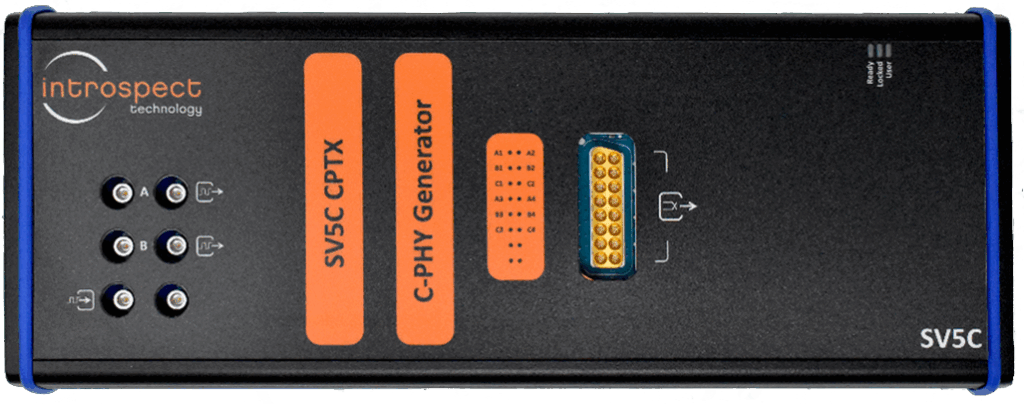

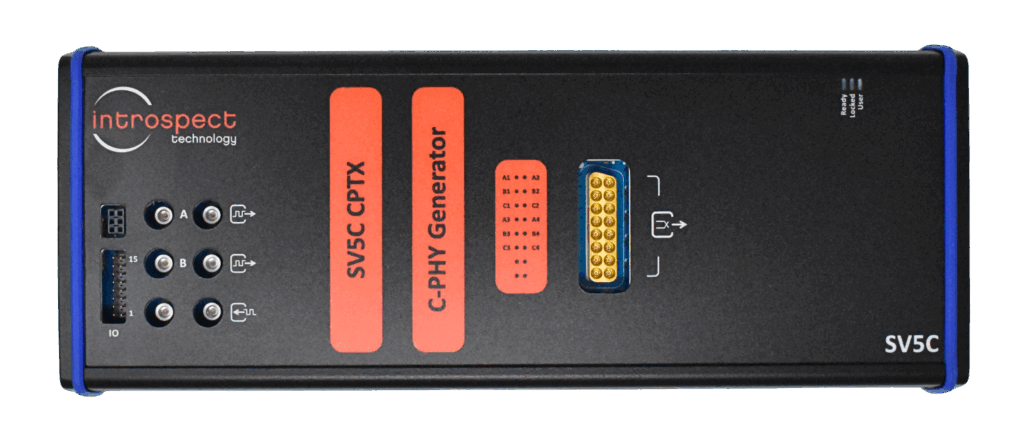

The SV5C-CPTX MIPI C-PHY Generator is an ultra-portable, high-performance instrument that provides the most comprehensive C-PHY receiver test capabilities available on the market.

The instrument operates at a continuous range of data rates and includes analog parameter controls that enable deep insights into receiver voltage sensitivity, receiver skew and jitter tolerance for receiver stress-testing. The C-PHY Generator operates with Introspect’s easy-to-use, highly versatile software environment, Pinetree, for automated physical layer compliance test, including the MIPI CTS. Pinetree also includes pattern compiler tools that enable the generation of complete DSI or CSI-2 packets such as color bars and active image frames for system-level test.
