• Any-rate operation across four C-PHY trios
  • Analog waveform capture on received LP and HS data
  • PHY-level burst-mode and continuous-mode analysis with advanced triggering options
  • High-level CSI-2 and DSI-2 protocol capture and analysis
  • State-of-the-art programming environment based on the highly intuitive Python language
Popular solutions
MIPI CSI-2 v1.3, v2.0, v2.1, MIPI DSI-2 v1.0, v1.1, MIPI C-PHY v1.0, v1.1, v1.2, MIPI DSI v1.3, MIPI CSI-2 v.3.0, MIPI DSI v.1.3.1, System Level Test, MIPI C-PHY v2.0
Number of Signal/Data Analyzers

4

Maximum Per-Lane Data Rate

6.5 Gsps

BENEFITS

  • Any-rate operation across four C-PHY trios
  • Analog waveform capture on received LP and HS data
  • PHY-level burst-mode and continuous-mode analysis with advanced triggering options
  • High-level CSI-2 and DSI-2 protocol capture and analysis
  • State-of-the-art programming environment based on the highly intuitive Python language

Features

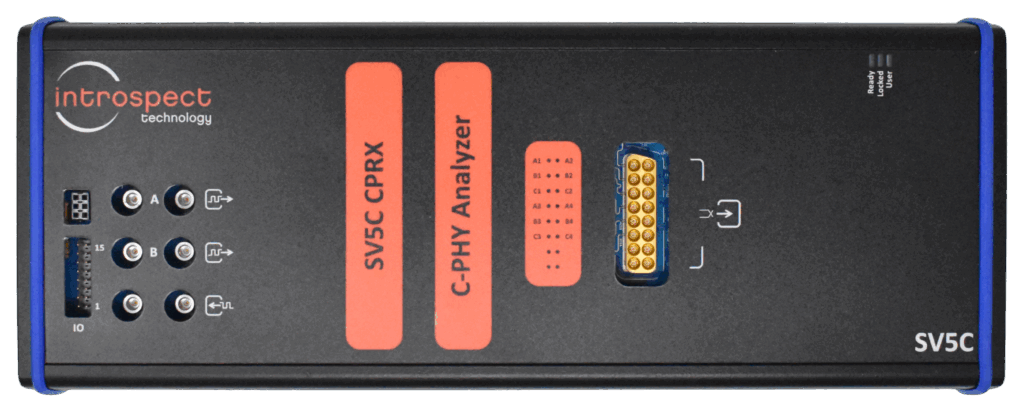

The SV5C-CPRX MIPI C-PHY Analyzer is an ultra-portable, high-performance instrument that enables characterization and validation of MIPI C-PHY transmitter ports.

The analyzer operates at up to 6.5 Gsps and combines analog signal measurement capabilities with sophisticated capture and compare modes for complete C-PHY packet analysis. The instrument operates using Introspect’s award-winning software environment, Pinetree, including a full suite of tools for DSI-2 and CSI-2 video frame extraction. The software enables test automation for packet error rate testing, protocol timing analysis and MIPI CTS.
