Introspect’s Integrated-Tip Interposers are designed to enable probing of next-generation memory interfaces running at ultra high transfer rates. Sitting underneath a memory device, the interposers provide a through path for signals between a processor and the memory device, while also generating a copy of the signal for oscilloscope or protocol analyzer probing. By integrating the high-impedance tip inside the interposer, this family of memory interposers creates a high-fidelity copy of the signal under test – in the analog sense – and solves the issue of reflections that often occur in traditional memory interposers.



Typical Application: Oscilloscope-Based Electrical Compliance

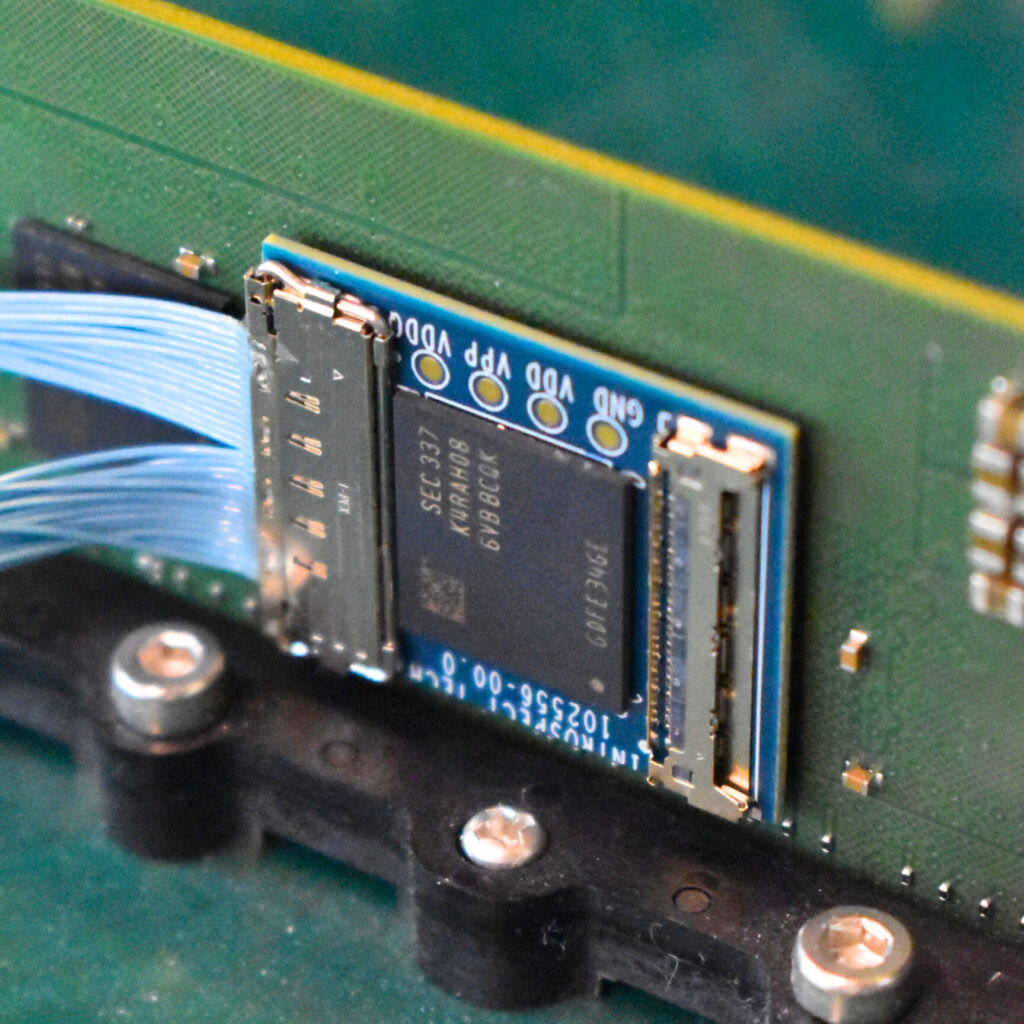

Integrated Tip Under Each Ball in a DDR, LPDDR, or GDDR Memory

Introspect’s Integrated-Tip Interposers are designed to enable probing of next-generation memory interfaces running at ultra high transfer rates. Sitting underneath a memory device, the interposers provide a through path for signals between a processor and the memory device, while also generating a copy of the signal for oscilloscope or protocol analyzer probing. By integrating the high-impedance tip inside the interposer, this family of memory interposers creates a high-fidelity copy of the signal under test – in the analog sense – and solves the issue of reflections that often occur in traditional memory interposers.



Typical Application: Oscilloscope-Based Electrical Compliance



Features

The following is a list of available and upcoming interposers.



Name Description Balls Package Type Riser Notes
LP5-315-O LPDDR5 memory interposer 315 1ch x 16 Yes Access to all pins for oscilloscope probing
LP5-315-P LPDDR5 memory interposer 315 1ch x 16 Yes Compatible with Introspect Protocol Analyzer
LP5-441-O LPDDR5 memory interposer 441 4ch x 32 Yes Access to all pins for oscilloscope probing
LP5-441-P LPDDR5 memory interposer 441 4ch x 32 Yes Compatible with Introspect Protocol Analyzer
LP5-496-O LPDDR5 memory interposer 496 4ch x 16 Yes Access to all pins for oscilloscope probing
LP5-496-P LPDDR5 memory interposer 496 4ch x 16 Yes Compatible with Introspect Protocol Analyzer
DDR-78-O DDR5 memory interposer 78 1ch x 4/x8 Yes Access to all pins for oscilloscope probing
DDR-78-P DDR5 memory interposer 78 1ch x 4/x8 Yes Compatible with Introspect Protocol Analyzer
DDR-RDIMM Full RDIMM interposer N/A 228 pin Yes Compatible with Introspect Protocol Analyzer
LP6-357-O LPDDR6 memory interposer 357 TBD Yes Coming soon



Questions? Visit our FAQ page or contact us for any inquiries.
